Product Description
Kirjeldus (eesti keeles)
LOXONE Valve Actuator Air on raadiojuhitav mootorajam. Tänu standardsetele adapterrõngastele saab seda kasutada paljudel ventiilidel, mida tavaliselt kasutatakse põrandakütte ja radiaatorite puhul.
Omadused:
- Lihtne paigaldus tänu LOXONE Airile
- Suur vastupidavus: usaldusväärne üle 500 000 sulgemise
- Peaaegu hääletu
- Väike ootetarve
- Vabalt määratav nupp
- Integreeritud temperatuuriandur
Description (English)

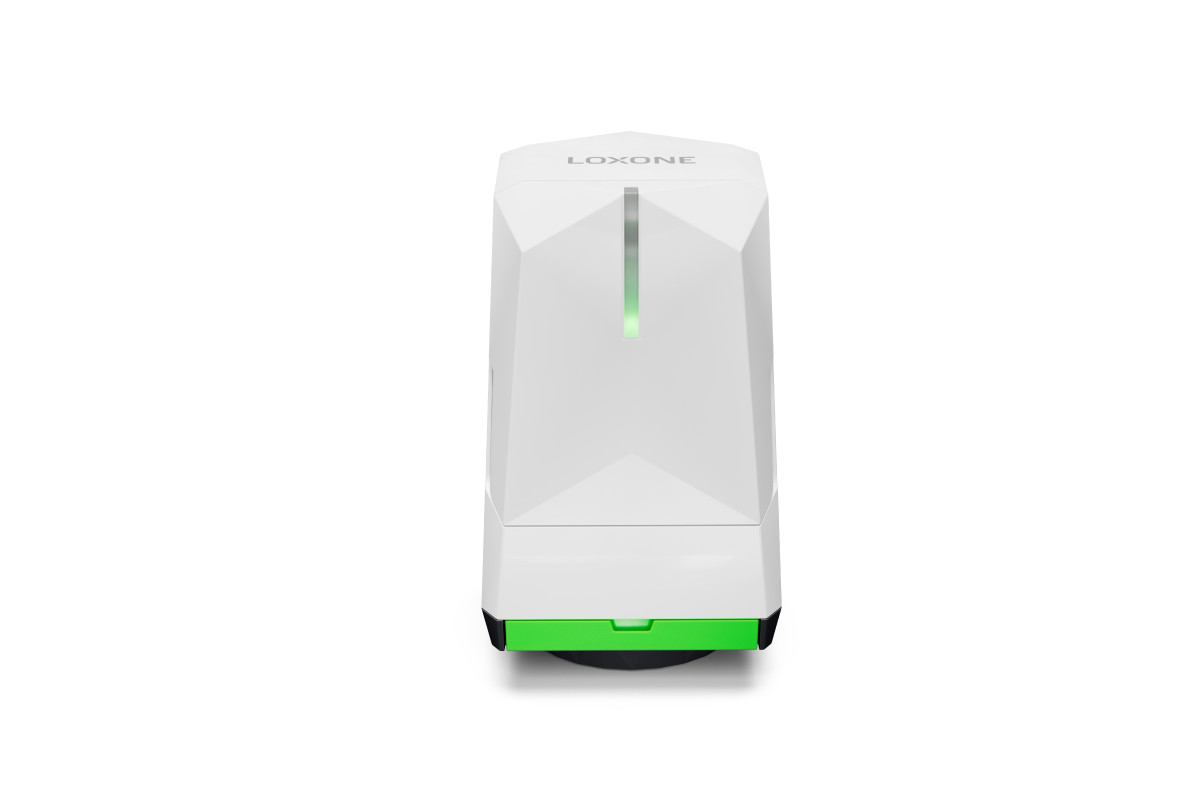

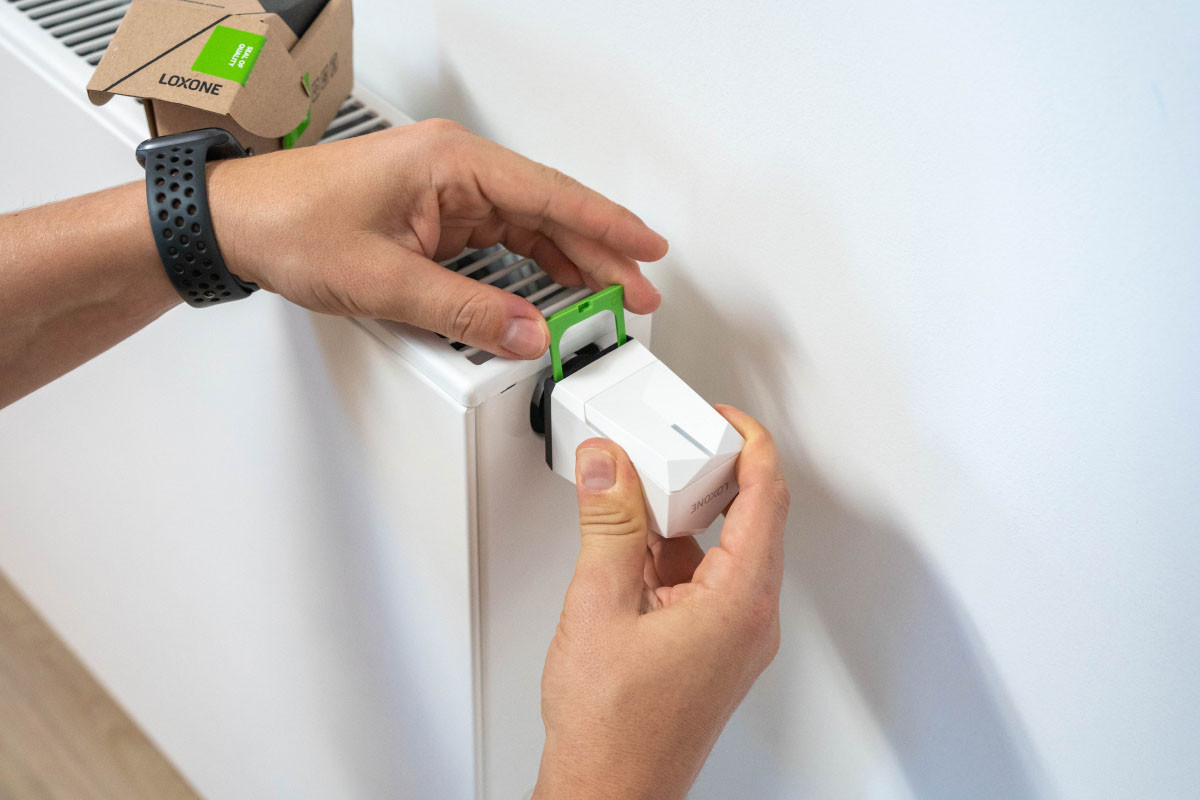

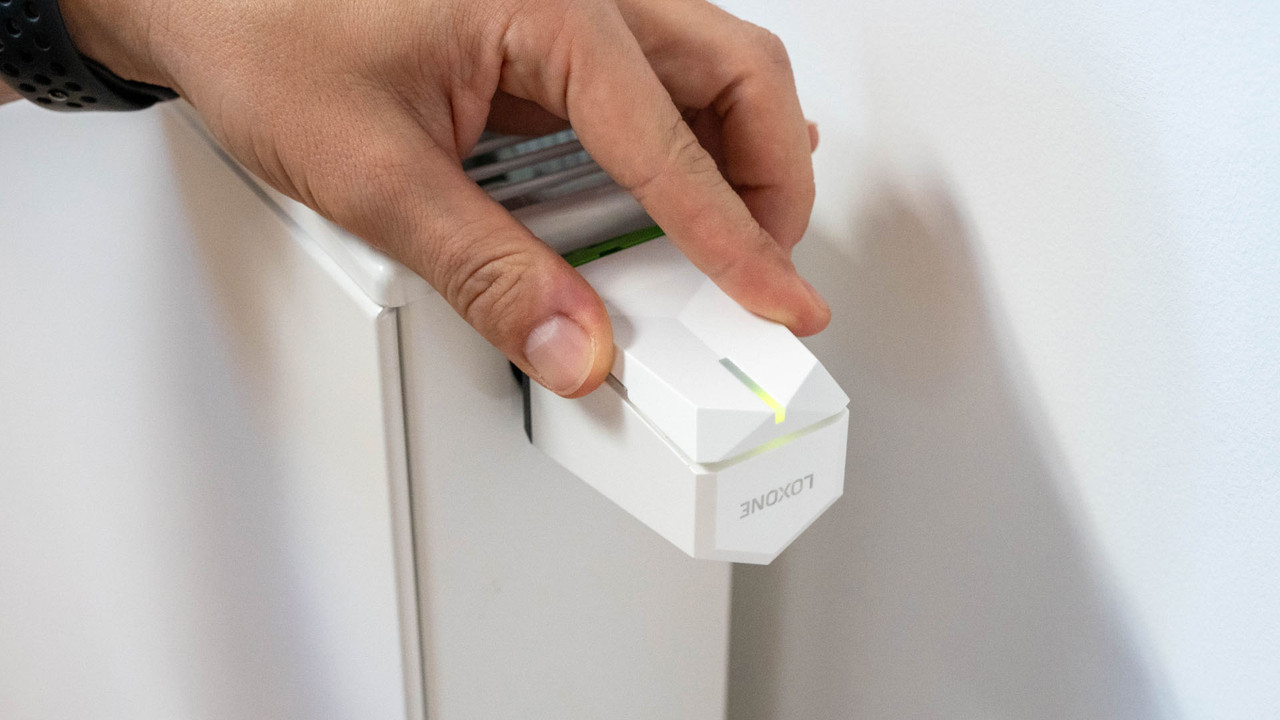

The LOXONE valve actuator Air is a motorized radio actuator. Thanks to standard adapter rings, it can be used on numerous valves that are typically used in underfloor heating and radiators.
Features:
- Easy installation thanks to LOXONE Air
- High durability: Reliable for more than 500,000 closures
- Almost silent
- Low standby consumption
- Freely assignable button
- Integrated temperature sensor
Tehnilised andmed / Technical data
| Tehnilised andmed / Technical Data | |
|---|---|
| Toide / Power Supply | 11 … 30VDC or 2x 1.5V AA batteries |
| Energiatarve / Power consumption | typ. 120mW, max. 3,6W |
| Võimsuskadu max koormusel / Power loss at max. load | 3.6W |
| Lükkejõud / Push force | 100N (Battery powered), 150N (24V powered) |
| Käigu pikkus / Stroke length | 5.0mm / 0.197" |
| Temperatuuri mõõtevahemik / Temperature detection range | -40 … 125°C +/- 0.5°C -40 … 257°F +/- 0.9°F |
| Liikumisajad / Journey times |
|
| Liidesed / Interfaces | |
| LOXONE Air | 868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW internal antenna |
| Keskkonnatingimused / Ambient Conditions | |
| Temperatuur / Temperature | -20 … 55 °C / -4 … 131 °F |
| Niiskus / Humidity | max. 80 % RH (non-condensing) |
| Ühendusklemmid / Connection Terminals | |
| Klemmi tüüp / Terminal type | SERIES 9176 IDC |
| Juhtme ristlõige / Wire cross-section | Ø 0,8mm (0,5mm² / AWG 20) |
| Ühendused / Connections | |
| IDC-tehnoloogia / IDC-technology | The wires of a cable are pressed into a single insulation cutting terminal with the help of an IDC Tool. This connection technique works without soldering, screwing and stripping. The IDC tool is included with the Miniserver, the Miniserver Compact and the Tree Extension. If required it can also be purchased separately in the shop: LOXONE IDC Tool (100226) |
| Toote omadused / Product Characteristics | |
| Värvid / Colours | White: RAL9003 + Black: RAL9005 + Green: RAL6018-P |
| Pinnaviimistlus / Finish | Matte |
| Kaal ja mõõtmed / Weight & Dimensions | |
| Netokaal / Net weight | 165 g |
| Kogukaal / Total weight | 185 g |
| Toote mõõtmed / Product dimensions | 45x47.5x76.5mm / 1.77x1.87x3.01” (LxWxH) with valve adapter 45x47.5x70mm / 1.77x1.87x2.76" (LxWxH) without valve adapter |
| Pakendi mõõtmed / Pack size | 60x83x52mm / 2.36x3.27x2.05" (LxWxH) |
| Sertifikaadid ja standardid / Certifications & Standards | |
| Ohutusklass / Safety class | IP20 |
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100603
