Product Description
Kirjeldus (eesti keeles)
LOXONE Touch & Grill Air on grillitermomeeter kahe temperatuurianduri, ruumi olulisemate funktsioonide juhtimiseks mõeldud seitsme puutepunkti, taimeri ja temperatuurihäirega. See ühendab kasutusmugavuse arhitektuurselt meeldiva, selge disainiga. Olgu temperatuuri mõõtmiseks toiduvalmistamisel või stiilse mobiilse juhtelemendina – tänu pikale patarei elueale saab Touch & Grill Airi paindlikult kasutada kõikjal, kus vaja.
Omadused:
- Seitse puutepunkti valikulise klõpsu tagasisidega
- Täpsed temperatuuriandurid (−15…300 °C; kaabli pikkus 1,5 m)
- Kvaliteetsest päris klaasist kasutajaliides
- Kvaliteetne tunne ja välimus
- Maksimaalne kasutusmugavus
Description (English)

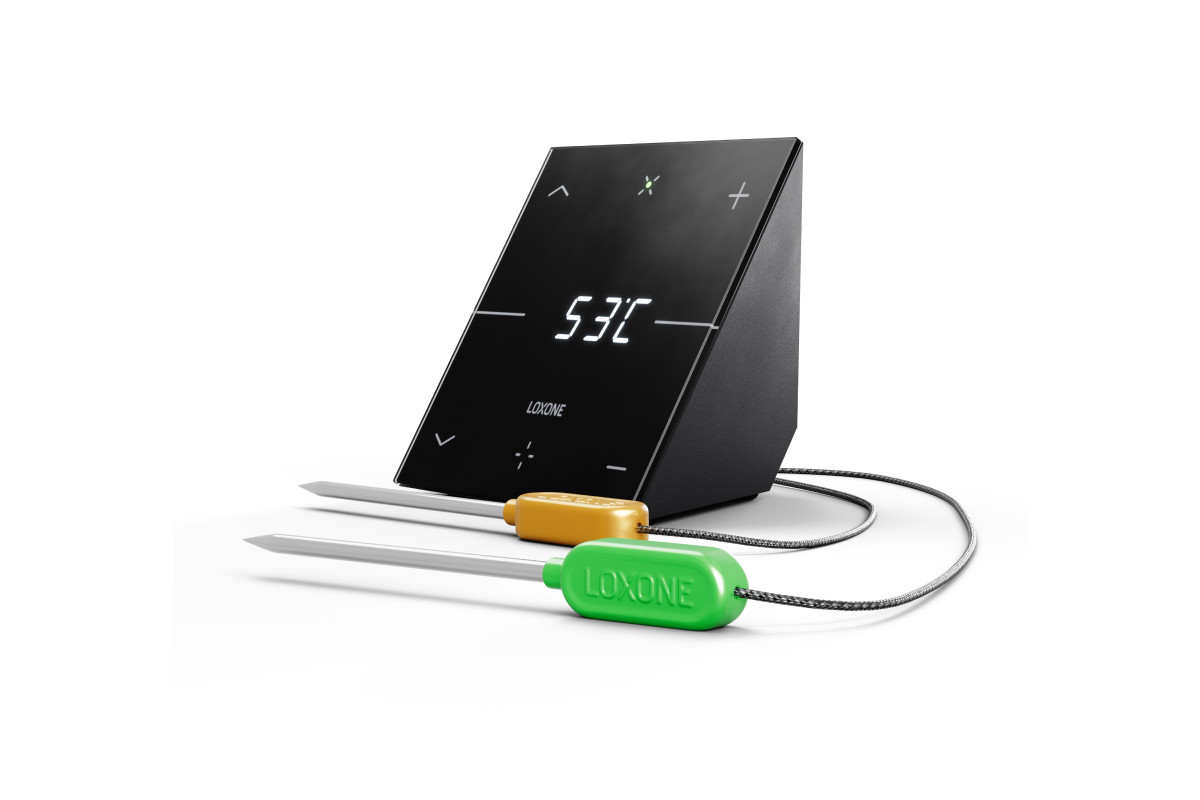

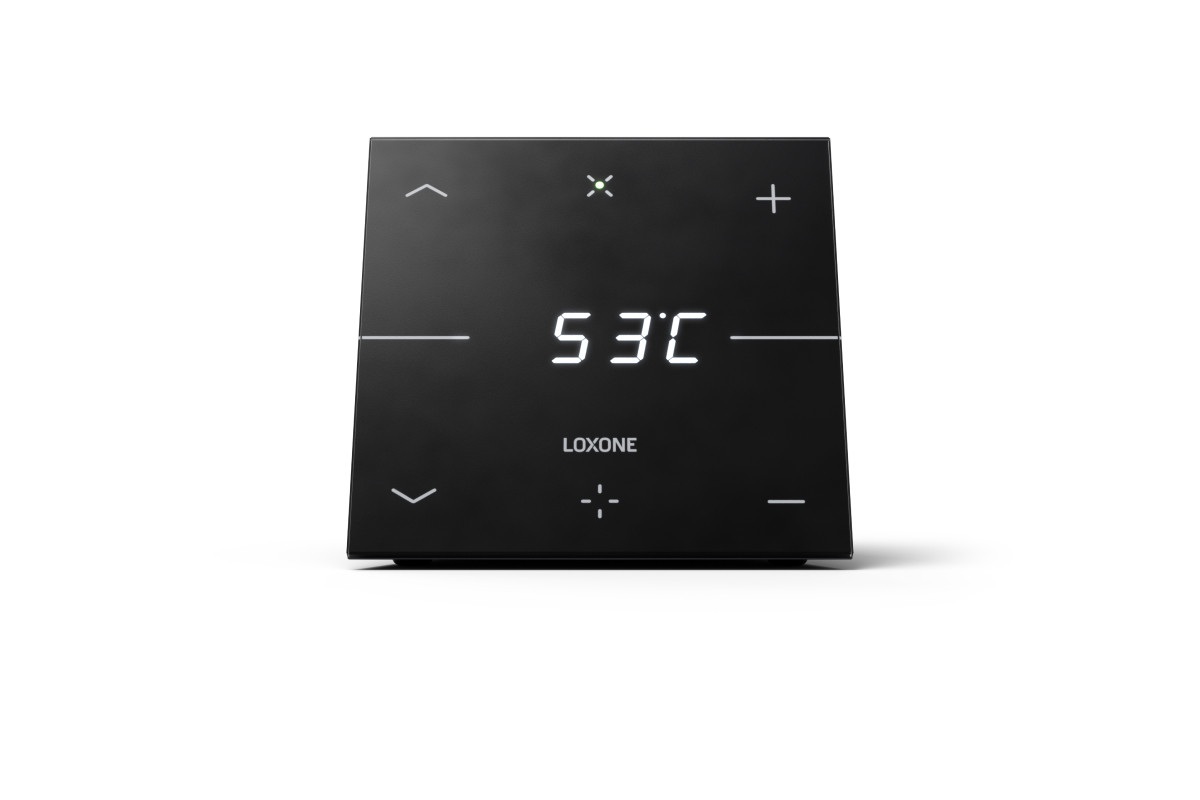

The LOXONE Touch & Grill Air is a grill thermometer with two temperature sensors, seven touch points for operating the most important functions in a room, as well as a timer and temperature alarm. It combines user-friendliness with an architecturally appealing, clear design. Whether for measuring temperature while cooking or as a stylish, mobile control element, the Touch & Grill Air can be used flexibly wherever you need it thanks to its long battery life.
Features:
- Seven touch points with optional click feedback
- Precise temperature sensors (-15 ... 300°C; cable length: 1.5m)
- User interface made of high-quality real glass
- High-quality feel and appearance
- Maximum user-friendliness
Tehnilised andmed / Technical data
| Elektrilised andmed / Electrical Specifications | |
|---|---|
| Toitepinge / Supply voltage | 5 VDC via Micro USB Power supply, integrated Li-Ion Battery |
| Energiatarve / Power consumption | typ. 0.150 W, max. 4 W |
| Võimsuskadu / Power loss | max. 4 W |
| Patarei eluiga / Battery Lifetime | Stand-by mode - without connected sensors: max. 1 450 h (max. 2 months) Continuous operation - with connected sensors: max. 170 h (max. 7 days) Battery life with active display: max. 7 h |
| Funktsionaalsed andmed / Functional Specifications | |
| Puutepunktid (7) / Touch points (7) | capacitive touch detection |
| Klõpsu tagasiside / Click feedback | Yes |
| Ekraan / Display | time, alarm time, temperature |
| Taimerifunktsioon / Timer function | adjustable on the device; built-in alarm signal or playback via Audioserver |
| Temperatuurihäire / Temperature alarm | built-in alarm signal or via Audioserver when target temperature is reached |
| Temperatuuriandurid (2) / Temperature sensors (2) | Temperature range: -15 ... 300 °C / 5 ... 572 °F, Cable length: 1 500 mm |
| Liidesed / Interfaces | |
| LOXONE Air | 868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p. 915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW internal antenna |
| Keskkonnatingimused / Ambient Conditions | |
| Temperatuur / Temperature | 0 … 40 °C / 32 … 104 °F |
| Niiskus / Humidity | max. 95 % RH (non-condensing) |
| Kaitseaste / Ingress protection | IP20 |
| Toote omadused / Product Characteristics | |
| Värvid / Colours | Anthracite: RAL 7016 |
| Pinnaviimistlus / Finish | Matte |
| Kaal ja mõõtmed / Weight & Dimensions | |
| Netokaal / Net weight | 418 g |
| Kogukaal / Total weight | 790 g |
| Toote mõõtmed / Product dimensions | 121 x 121 x 97 mm / 4.76 x 4.76 x 3.82” (L x W x H) |
| Pakendi mõõtmed / Pack size | 190 x 215 x 91 mm / 7.48 x 8.46 x 3.58” (L x W x H) |
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100806
