Product Description
Kirjeldus (eesti keeles)

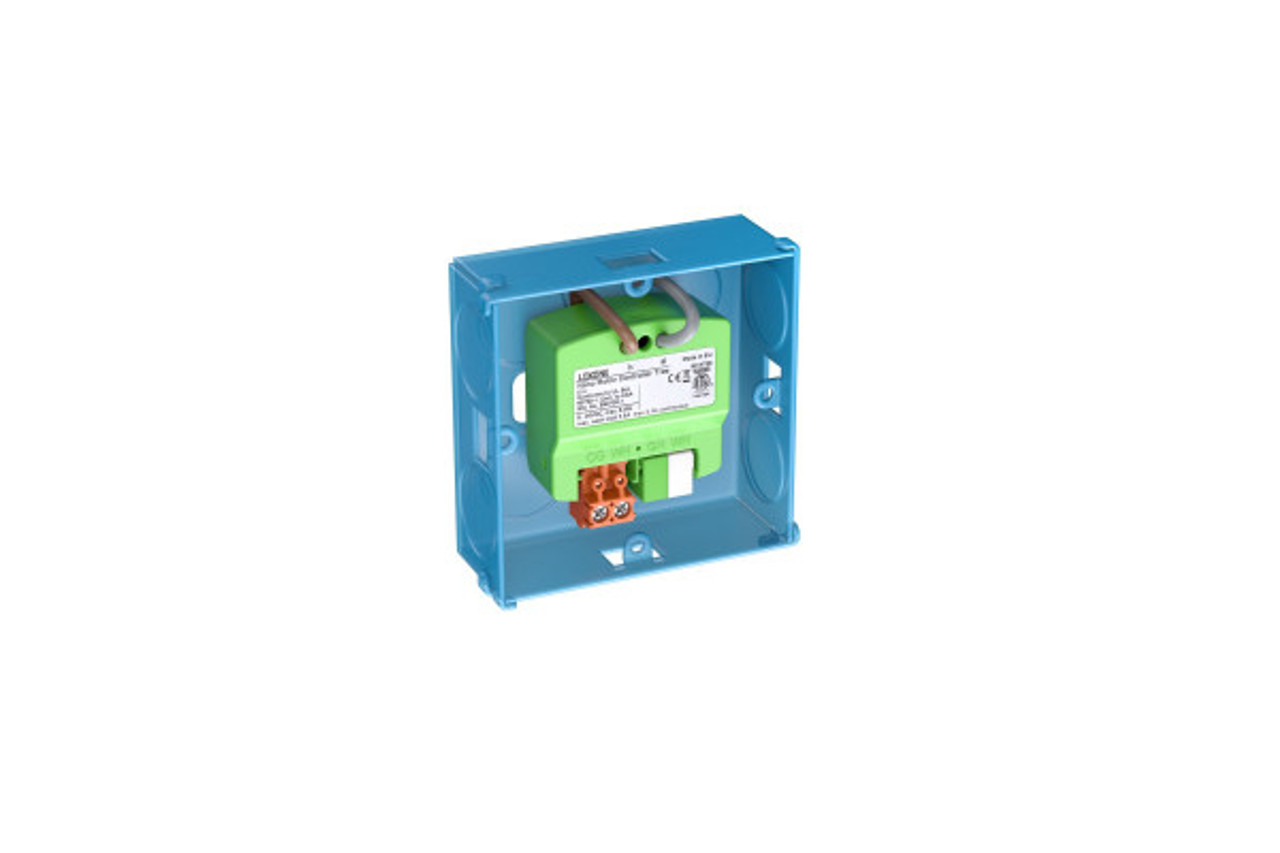

Nano Motor Controller Tree on kompaktne alalisvooluväljunditega moodul, mida juhitakse LOXONE Tree liidese kaudu. Seadistatavate väljunditega saab juhtida alalisvoolumootorite kiirust või hämardada LED-valgusteid.
Omadused:
- 3 töörežiimi: kahesuunaline mootor, ühesuunaline mootor, PWM-hämardus
- Integreeritud liigvoolu ja voolu tuvastus
Beschreibung (Deutsch)
Der Nano Motor Controller Tree ist ein kompaktes Modul mit Gleichstromausgängen, das über die LOXONE Tree Schnittstelle angesteuert wird. Die konfigurierbaren Ausgänge können zur Drehzahlsteuerung von Gleichstrommotoren oder zum Dimmen von LED-Lampen verwendet werden.
Merkmale:
- 3 Betriebsarten: bidirektionaler Motor, unidirektionaler Motor, PWM-Dimmung
- Integrierte Überstromerkennung und Stromflusserkennung
Technische Daten
| Elektrische Daten | |
|---|---|
| Versorgungsspannung | 9 … 26 VDC |
| Leistungsaufnahme | typ. 0,22 W, max. 0,28 W |
| Konfiguration | |
| Betriebsart | | Motor Bidirectional | 1 Ausgang | Motor Unidirectional | 2 Ausgänge | Dimmer | 1 Ausgang |
| Maximale Gesamtlast der Ausgänge | | 2,1 A dauerhaft | max. 2,1 A |
| PWM-Frequenz | | 1 … 10 kHz | 400 Hz |
| Verlustleistung bei max. Last | | 5,8 W | 1,7 W |
| Stromerfassungsbereich | | 100 … 3 500 mA | - |
| Überstromerfassungsbereich | | 100 … 3 500 mA | - |
| Schnittstellen | |
| LOXONE Tree | Anschluss mit Miniserver / Tree Extension |
| Umgebungsbedingungen | |
| Temperatur | -20 … 50 °C / -4 … 122 °F |
| Luftfeuchtigkeit | max. 95 % RH (nicht kondensierend) |
| Schutzart | IP20 |
| Anschlussklemmen | |
| Leiterquerschnitt | 24 V DC | LOXONE Tree | | 0,75 … 2,5 mm² / AWG 18 … 13 | 0,5 … 1 mm² / AWG 22 … 18 |
| Abisolierlänge | 5 mm / 0.2" | 5 … 6 mm / 0,2 … 0.24” |
| Anzugsdrehmoment | 0,35 … 0,4 N·m / 0,26 … 0,3 Ib·ft | - |
| Temperaturbeständigkeit | -40 … 105 °C / -40 … 221 °F | -40 … 105 °C / -40 … 221 °F |
| Leitertyp | Kupfer / Aluminium | Kupfer / Aluminium, solid Leitung nur |
| Anschlusskabel | |
| Leiterquerschnitt | 1 mm² / AWG 18 |
| Abisolierlänge | 10 mm / 0.4" |
| Temperaturbeständigkeit | min. 80 °C / 176 °F for IEC, | min. 75 °C / 167 °F for UL |
| Länge | 150 mm / 5.91" |
| Produkteigenschaften | |
| Farben | Grün: RAL 6018 |
| Oberfläche | Matt |
| Gewicht & Abmessungen | |
| Nettogewicht | 37 g |
| Gesamtgewicht | 59 g |
| Produktabmessungen | 39,45 x 38,95 x 20,20 mm / 1,55 x 1,53 x 0.80” (L x W x H) |
| Verpackungseinheit | 84 x 80 x 47 mm / 3,31 x 3,15 x 1.85” (L x W x H) |
| Zertifizierungen & Normen | |
| Zertifizierungen | UL 60730-1 | CSA E60730-1 | IEC 60730-1 |
Quelle: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100473
Description (English)
The Nano Motor Controller Tree is a compact module with direct current outputs, which is controlled via the LOXONE Tree interface. The configurable outputs can be used to control the speed of direct current motors or to dim LED lamps.
Features:
- 3 operating modes: bidirectional motor, unidirectional motor, PWM dimming
- Integrated overcurrent detection and current flow detection
Tehnilised andmed / Technical data
| Elektrilised andmed / Electrical Specifications | |||||
|---|---|---|---|---|---|
| Toitepinge / Supply voltage | 9 … 26 VDC | ||||
| Energiatarve / Power consumption | typ. 0.22 W, max. 0.28 W | ||||
| Konfiguratsioon / Configuration | |||||
| Töörežiim / Operating mode |
| ||||
| Väljundite max koguvõimsus / Maximum total load of outputs |
| ||||
| PWM-sagedus / PWM frequency |
| ||||
| Võimsuskadu max koormusel / Power loss at max. load |
| ||||
| Voolu mõõtevahemik / Current detection range |
| ||||
| Liigvoolu tuvastusvahemik / Overcurrent detection range |
| ||||
| Liidesed / Interfaces | |||||
| LOXONE Tree | Connection with Miniserver / Tree Extension | ||||
| Keskkonnatingimused / Ambient Conditions | |||||
| Temperatuur / Temperature | -20 … 50 °C / -4 … 122 °F | ||||
| Niiskus / Humidity | max. 95 % RH (non-condensing) | ||||
| Kaitseaste / Ingress protection | IP20 | ||||
| Ühendusklemmid / Connection Terminals | |||||
| Juhtme ristlõige / Wire cross-section |
| ||||
| Isolatsiooni eemaldamise pikkus / Stripping length |
| ||||
| Pingutusmoment / Tightening torque |
| ||||
| Temperatuuritaluvus / Temperature resistance |
| ||||
| Juhi tüüp / Conductor type |
| ||||
| Ühenduskaabel / Connecting Cable | |||||
| Juhtme ristlõige / Wire cross-section | 1 mm² / AWG 18 | ||||
| Isolatsiooni eemaldamise pikkus / Stripping length | 10 mm / 0.4" | ||||
| Temperatuuritaluvus / Temperature resistance | min. 80 °C / 176 °F for IEC, min. 75 °C / 167 °F for UL | ||||
| Pikkus / Length | 150 mm / 5.91" | ||||
| Toote omadused / Product Characteristics | |||||
| Värvid / Colours | Green: RAL 6018 | ||||
| Pinnaviimistlus / Finish | Matte | ||||
| Kaal ja mõõtmed / Weight & Dimensions | |||||
| Netokaal / Net weight | 37 g | ||||
| Kogukaal / Total weight | 59 g | ||||
| Toote mõõtmed / Product dimensions | 39.45 x 38.95 x 20.20 mm / 1.55 x 1.53 x 0.80” (L x W x H) | ||||
| Pakendi mõõtmed / Pack size | 84 x 80 x 47 mm / 3.31 x 3.15 x 1.85” (L x W x H) | ||||
| Sertifikaadid ja standardid / Certifications & Standards | |||||
| Sertifikaadid / Certifications | UL 60730-1 CSA E60730-1 IEC 60730-1 | ||||
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100473
