Product Description
Kirjeldus (eesti keeles)
Tunable White LED-riba sobib ideaalselt erinevate valgusstseenide loomiseks külmvalges ja soojavalges valguses hoone kaudvalgustuseks.
Omadused:
- 300 kvaliteetset LED-i 5 m pikkusel ribal
- Alumisel küljel kleepribad lihtsaks kinnitamiseks
- Kvaliteetsed ja vastupidavad juhtrajad parema murdekindluse ja ülekuumenemise vältimiseks
NB! Kahe LED-riba otseühendamisel tekib suurem vool, mis soojendab ribasid ja kiirendab nende vananemist.
Description (English)

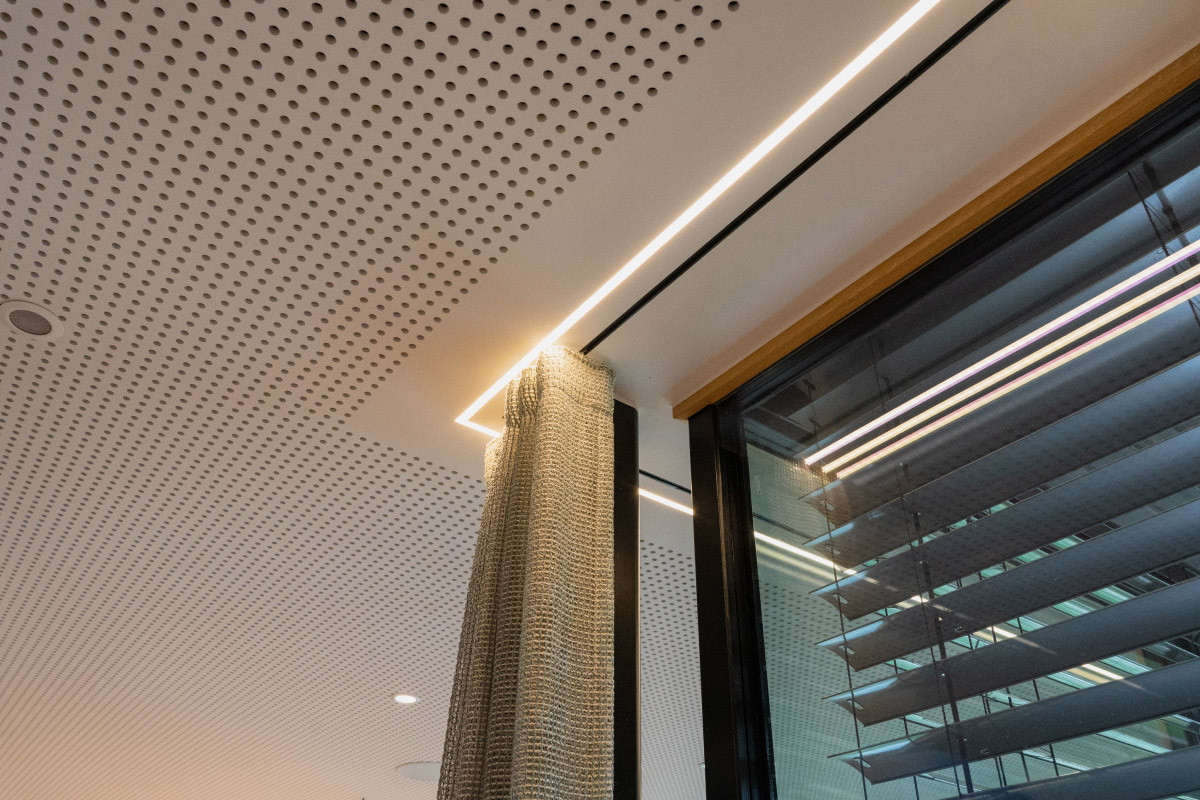

The Tunable White LED strip is ideal for creating different lighting scenes in cold white and warm white light for indirect lighting in your building.
Features:
- 300 high-quality LEDs across 5m
- Adhesive strips on the underside for easy attachment
- High-quality and durable conductor tracks for increased kink resistance and to prevent heat build-up
Note: The direct connection of two LED strips creates a stronger current flow, which heats the strips and accelerates aging.
Tehnilised andmed / Technical data
| Tehnilised andmed / Technical Data | |
|---|---|
| Toide / Power Supply | 24VDC constant voltage, PWM dimmable |
| Energiatarve / Power consumption | Total: 60W, 12W/m WW: 30W, 6W/m CW: 30W, 6W/m |
| Energiatõhusus (EL) 2017/1369 / Energy efficiency (EU) 2017/1369 | G |
| Keskkonnatingimused / Ambient Conditions | |
| Temperatuur / Temperature | -25 … 50 °C / -13 … 122 °F |
| Tehnilised andmed / Technical Data | |
| Niiskus / Humidity | 10 … 95 % RH (non-condensing) |
| Lõigatav / Cuttable | Every 10cm / 3.94" |
| LED-riba max pikkus / Max. LED strip length | 10m / 393.7" |
| Valguse omadused / Light Properties | |
| Värvustemperatuur / Colour temperature | WW: 2900K (+/- 200K) CW: 6000K (+/- 200K) |
| Valgusvoog / Luminous flux | 720lm/m |
| Värviesitusindeks (CRI) / Colour rendering index (CRI) | 80+ |
| Valgusviljakus / Luminous Efficiency | 60lm/W |
| Kiirgusnurk / Beam angle | 120° |
| Ühendused / Connections | |
| Juhtme ristlõige / Wire cross-section | Connection Cables: 0.5mm² / AWG22 Connector: 0.5 … 1mm² / AWG22 … AWG18 |
| Temperatuuritaluvus / Temperature resistance | Connection Cables: max. 70°C / 158°F Connector: max. 70°C / 158°F |
| Pikkus / Length | Connection Cables: 130mm / 5.12" Connector: - |
| Pistiku tüüp / Connector type | Type of Connector: - Connector: Hippo-M |
| Soonte värvid / Wire colours | Black: Plus (+) Yellow: WW (-) White: CW (-) |
| Kaal ja mõõtmed / Weight & Dimensions | |
| Netokaal / Net weight | 108 g |
| Kogukaal / Total weight | 146g |
| Toote mõõtmed / Product dimensions | 5000x10x2mm / 196.85x0.39x0.08" |
| Pakendi mõõtmed / Pack size | 142x142x25.5mm / 5.59x5.59x1" (LxWxH) |
| Sertifikaadid ja standardid / Certifications & Standards | |
| Ohutusklass / Safety class | IP20 |
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 200408
