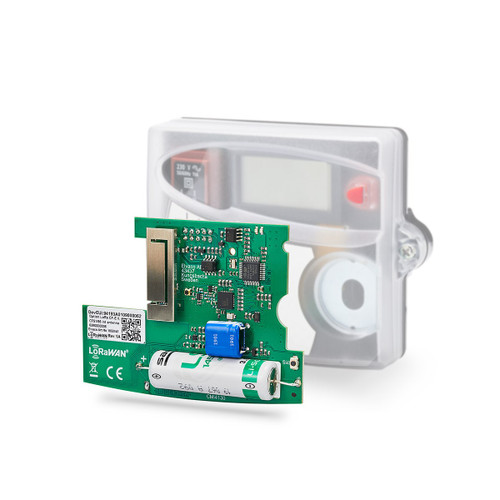

CMi4130 LoRaWAN Module(i) Battery Bulk

Kirjeldus (eesti keeles)

CMi4130 sisemine arvestisidemoodul (MCM) on lihtsasti kasutatav, ökonoomne ja energiatõhus lahendus Itron CF ECHO II/51/55 arvesti ja vastuvõtva serveri vaheliseks sideks. Arvestimoodul kasutab LoRaWAN võrku. Mooduli tunnused on pikk leviulatus, energiatõhus patareitöö vähemalt üksteist aastat ning madalad soetus- ja kasutuskulud. Seda saab seadistada NFC kaudu Elvaco OTC mobiilirakendusega.

Asjade interneti (IoT) kiire kasv on toonud kaasa uusi sidetehnoloogiaid, mis on välja töötatud kasvava energiatõhususe ja suure leviulatuse nõudluse rahuldamiseks. LoRaWAN on üks neist. CMi4130 paigaldatakse Itron CF ECHO II/51/55 sisse, et edastada arvestiandmeid vastuvõtvale serverile LoRaWAN võrgu kaudu. Toote patareiiga on 11 aastat, see on energiatõhus, sellel on suur leviulatus ja selle saab lihtsalt järelpaigaldada juba kasutusel olevasse arvestisse. CMi4130 seadistamine käib lihtsalt Elvaco OTC mobiilirakendusega (NFC kaudu). CMi4130-ga pakub Elvaco arvestisidemoodulit klientidele, kes vajavad kasutajasõbralikku ja kuluefektiivset lahendust.

CMi4130 koosneb vastupidavast korpusest, NFC- ja LoRaWAN-antennist ning pika kestvusega patareist. Roheline ja punane LED näitavad CMi4130 hetkeolekut või vigu ning nupuga saab CMi4130 sisse lülitada ja taaskäivitada. CMi4130 on NFC tõttu eriti lihtne seadistada. Esmalt tuleb arvestimoodul aktiveerida Elvaco OTC mobiilirakenduses. Seejärel toimub seadme andmeedastuskiiruse kalibreerimine ja seadistamine LoRaWAN võrgu haldusserveriga automaatselt. Olulisi seadistusparameetreid saab määrata nutitelefoni rakendusega NFC kaudu või raadio teel LoRaWAN allalingi abil.

Description (English)

The CMi4130 Internal Meter Connectivity Module (MCM) is an easy-to-use, economical and energy-efficient solution for communication between the Itron CF ECHO II/51/55 meter and the receiving server. The meter module uses a LoRaWAN network. The module is characterized by a long communication range, energy-efficient battery operation over at least eleven years as well as low acquisition and operating costs. It can be configured via NFC using Elvaco’s OTC mobile app.

The rapid growth of IoT (“Internet of things”) has resulted in new communication techniques, specifically developed to meet the growing demand of high energy-efficiency and long range. LoRaWAN is one such technique. CMi4130 is mounted inside an Itron CF ECHO II/51/55 to deliver meter data to a receiving server via a LoRaWAN network. The product has 11 years of battery life, is energy-efficient, has a long communication range and is easily retrofitted inside an already deployed meter. CMi4130 is easily configured through Elvaco OTC mobile app (via NFC). With CMi4130, Elvaco offers a meter communication module designed for customers that require a user-friendly and cost-effective solution.

The CMi4130 consists of a robust housing, an NFC and a LoRaWAN antenna as well as a long-lasting battery. While a green and a red LED communicate the current status of the CMi4130 or indicate errors, the push button allows you to switch on and restart the CMi4130. The CMi4130 is particularly easy to configure thanks to NFC. First, the meter module must be activated in the Elvaco OTC mobile app. Subsequently, the calibration of the data rate of the device and the configuration with the LoRaWAN network management server are carried out automatically. The setting of important configuration parameters can be made with the smartphone app via NFC or by radio with the LoRaWAN downlink.

Tehnilised andmed / Technical data

Allikas / Source: Elvaco ametlikud tooteandmed / official product data (elvaco.com). Tootekood / Item No.: 1100345
