Product Description
Kirjeldus (eesti keeles)
CMeX20 on M-Bus moodul kaugloenguks, mis suhtleb ABB arvestitega tüüpidest B21/B23/B24. CMeX20 suhtleb ABB arvestiga IR-liidese kaudu, tagades suure jõudlusega andmekogumise ja kaotades vajaduse seadmete vahelise lisajuhtmestuse järele.
CMeX20 võimaldab kasutajatel optimeerida kaugloendust, integreerides andmed M-Bus juhtme kaudu oma kaugloendussüsteemi. CMeX20 lihtne paigaldus, modulaarne ehitus ja töökindel andmeedastus teevad sellest ideaalse täienduse nutikale arvestusele.
CMeX20 on väline arvestisidemoodul, mida kasutatakse ABB B21/B23/B24 elektriarvesti andmete kogumiseks ja nende edastamiseks vastuvõtvale süsteemile M-Bus kaudu. Moodul suhtleb ABB arvestiga IR kaudu ja alustab andmete kogumist kohe pärast käivitamist. CMeX20 modulaarne ehitus teeb olemasoleva paigaldise laiendamise lihtsaks, kui vajadused muutuvad.
Description (English)

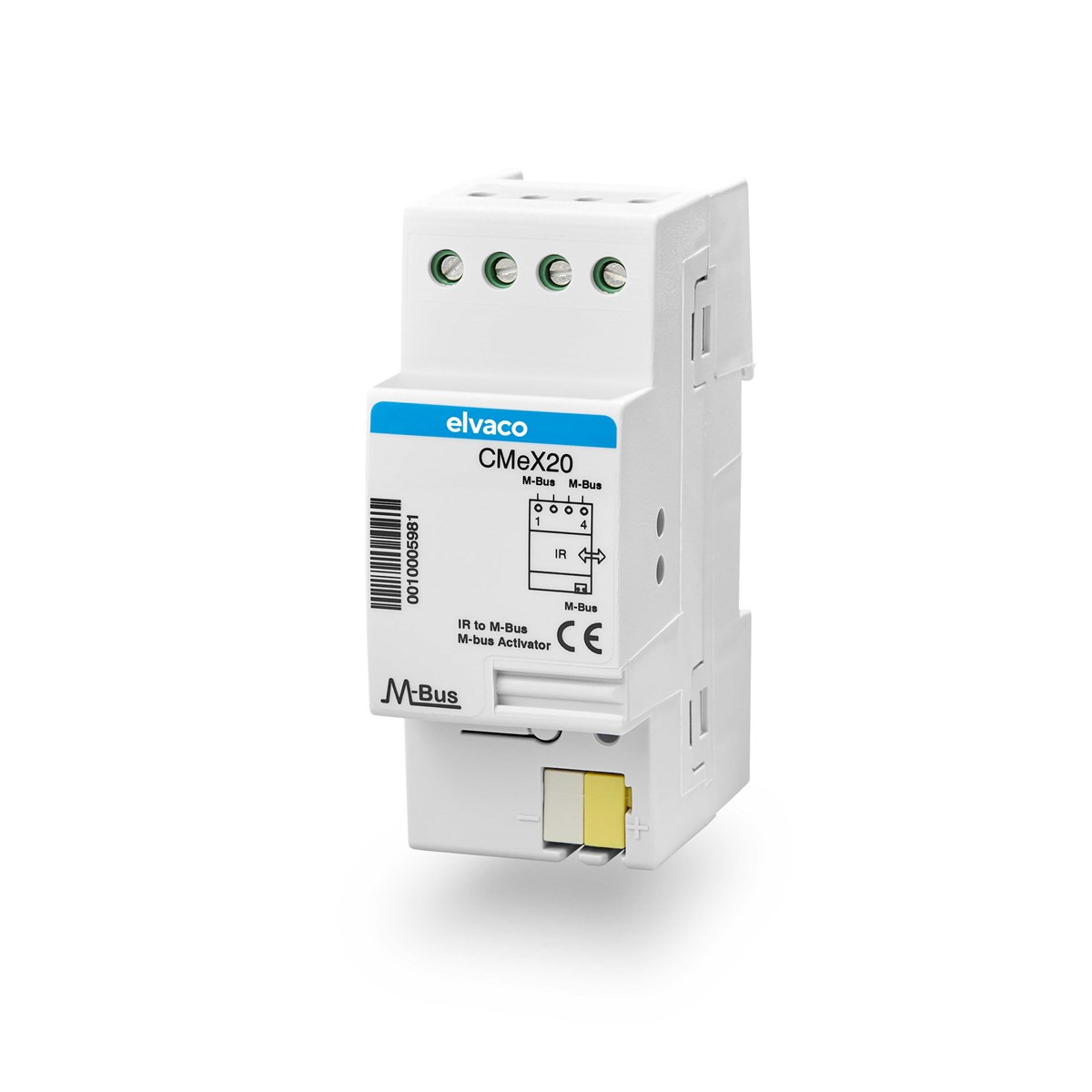

The CMeX20 is an M-Bus module for remote meter reading, which communicates with ABB meters of the types B21/B23/B24. The CMeX20 communicates with the ABB meter via IR interface for high-performance data acquisition, eliminating the need for further wiring between the devices.
The CMeX20 enables users to optimise their remote meter reading whereby they integrate data into their remote meter reading system via an M-Bus wire. The CMeX20s easy installation, modular design and reliable data transmission make it an ideal addition to smart metering.
CMeX20 is an external meter connectivity module used to collect meter data from an ABB B21/B23/B24 electricity meter and deliver it to a receiving system by M-Bus. The MCM communicates with the ABB meter through IR and will initiate collection of data immediately after start-up. CMeX20 has a modular design, which makes it easy to extend an existing installation if needs are changing.
Tehnilised andmed / Technical data
| Mehaanika / Mechanics | |
|---|---|
| Korpuse materjal / Casing material | Polyamide |
| Mõõtmed (l x k x s) / Dimensions (w x h x d) | 35 x 90 x 65 mm (2 DIN modules) |
| Kaitseklass / Protection class | IP20 |
| Kaal / Weight | 100 g |
| Paigaldus / Mounting | Mounted on DIN rail (DIN 50022) 35 mm |
| Elektriühendused / Electrical connections | |
| Toitepinge / Supply voltage | From M-Bus |
| M-Bus slave-port / M-Bus slave port | Screw terminal. Cable 0.25-1.5 mm², 0.5 Nm tightening torque |
| Elektrilised omadused / Electrical characteristics | |
| Nimipinge / Nominal voltage | 21-42 VDC through M-Bus connection, independent of wiring polarity |
| Koormusühikud / Unit loads | 2T/3 mA |
| Keskkonnatingimused / Environmental specifications | |
| Töötemperatuur / Operating temperature | -20 °C to +55 °C |
| Töö niiskus / Operating humidity | 5 % to 90 %, non-condensing |
| Töökõrgus / Operating altitude | 0-2000 m |
| Saastekraad / Pollution degree | Degree 2 |
| Kasutuskeskkond / Usage environment | Indoors, can be extended with IP67 enclosure for outdoor use |
| Hoiustamistemperatuur / Storage temperature | -40 °C to +85 °C |
| Kasutajaliides / User interface | |
| Oranž LED / Orange LED | Power/M-Bus activity |
| M-Bus | |
| Liidesed / Interfaces | IR, M-Bus slave |
| M-Bus standard | EN 13757 |
| M-Bus slave-liides / M-Bus slave interface | |
| M-Bus andmeedastuskiirus, slave-port / M-Bus baud rate, slave port | 300 and 2400 bit/s |
| Nimipinge, slave-port / Nominal voltage, slave port | 21-42 VDC |
| Aadressimisrežiimid / Addressing modes | Electricity meter's secondary address |
| M-Bus info / M-Bus information | All fields in the first telegram of the electricity meter |
| Integreerimine / Integration | |
| Arvesti teostus / Meter implementation | ABB meters with IR interface |
| Ühendatud arvestite arv / Number of connected meters | 1 |
| Sertifikaadid / Approvals | |
| EMC | EN 61000-6-2, EN 61000-6-3 |
| Edastused / Transmissions | |
| Korpuse materjal / Casing material | Polyamide |
| Kaitseklass / Protection class | IP20 |
| Mõõtmed (l x k x s) / Dimensions (w x h x d) | 35 x 90 x 65 mm (2 DIN modules) |
| Kaal / Weight | 100 g |
| Paigaldus / Mounting | Mounted on DIN rail (DIN 50022) 35 mm |
| Toitepinge / Supply voltage | From M-Bus |
| M-Bus slave-port / M-Bus slave port | Screw terminal. Cable 0.25-1.5 mm², 0.5 Nm tightening torque |
| Nimipinge / Nominal voltage | 21-42 VDC through M-Bus connection, independent of wiring polarity |
| Koormusühikud / Unit loads | 2T/3 mA |
| Töötemperatuur / Operating temperature | -20 °C to +55 °C |
| Töö niiskus / Operating humidity | 5 % to 90 %, non-condensing |
| Töökõrgus / Operating altitude | 0-2000 m |
| Saastekraad / Pollution degree | Degree 2 |
| Kasutuskeskkond / Usage environment | Indoors, can be extended with IP67 enclosure for outdoor use |
| Hoiustamistemperatuur / Storage temperature | -40 °C to +85 °C |
| Oranž LED / Orange LED | Power/M-Bus activity |
| Liidesed / Interfaces | IR, M-Bus slave |
| M-Bus standard | EN 13757 |
| M-Bus andmeedastuskiirus, slave-port / M-Bus baud rate, slave port | 300 and 2400 bit/s |
| Nimipinge, slave-port / Nominal voltage, slave port | 21-42 VDC |
| Aadressimisrežiimid / Addressing modes | Electricity meter's secondary address |
| M-Bus info / M-Bus information | All fields in the first telegram of the electricity meter |
| Arvesti teostus / Meter implementation | ABB meters with IR interface |
| Ühendatud arvestite arv / Number of connected meters | 1 |
| EMC | EN 61000-6-2, EN 61000-6-3 |
| Side / Communication | M-Bus |
Dokumendid / Documents
Allikas / Source: Elvaco ametlikud tooteandmed / official product data (elvaco.com). Tootekood / Item No.: 1050010
