Product Description
Kirjeldus (eesti keeles)
LOXONE Tree Cable sisaldab soonepaare alalisvoolutoite ja Tree seadmete andmeliinide juhtmestamiseks. Kaablis on ka 1,5 mm² ristlõikega soonepaar suurema võimsusvajadusega seadmete toiteks.
Omadused:
- Universaalselt kasutatav kõigi Tree toodete jaoks
- Pappkast kerimisega, mis takistab keerdumist
- Lihtne isolatsiooni eemaldamine ja ühendamine tänu 2 × 1,5 mm² toitesoontele ja 2 × 2 × 0,8 mm soontele
- Vastupidav ehitus usaldusväärseteks ühendusteks ilma soonte murdumiseta
- Täpne värvikodeering
- Täpne meetrimärgistus
Sertifikaadid: CPR-klass Eca
Description (English)
The LOXONE Tree Cable contains wire pairs for wiring the DC power supply and the data lines of Tree devices. The cable also contains a wire pair with a 1.5mm² cross-section for supplying devices with higher power requirements.
Features:
- Can be used universally for all Tree products

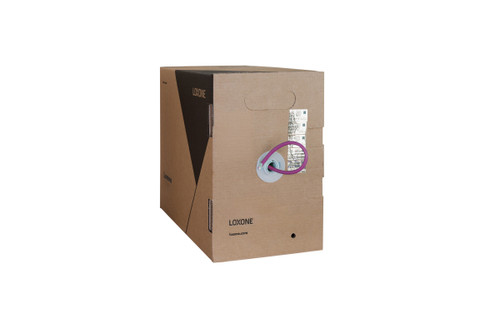

- Cardboard box with winding to prevent twisting

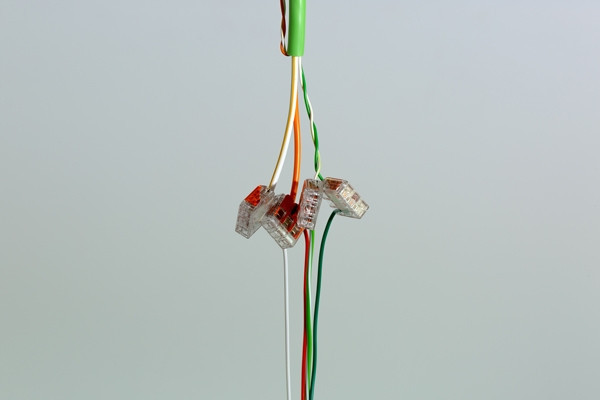

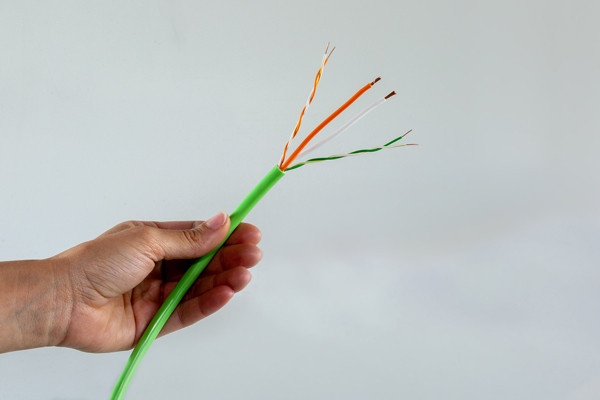

- Easy stripping and connection thanks to 2x1.5mm² power cable and 2x2x0.8mm cables
- Robust construction for reliable connections without strand breakage
- Precise color coding
- Exact meter marking
Certifications: CPR Class Eca
Tehnilised andmed / Technical data
| Elektrilised andmed / Electrical Specifications | |
|---|---|
| Nimipinge / Nominal voltage | 2 x 2 x 0,8 mm (Data wires Tree / sensory 24V): max. 25 VDC 2 x 1,5 mm² (Power wires): 230 VAC The power wire with 2 x 1.5 mm² can be loaded with 230 V, but the data wire must not be connected to a 230 V circuit. Before connecting the data conductors, the entire circuit must be limited to a maximum of 25 V. |
| Katsepinge / Test voltage | 5500 VAC |
| CPR-klass / CPR class | Eca |
| Temperatuur / Temperature | moved: -15 … 70 °C / 5 … 158 °F permanently installed: -30 … 80 °C / -22 … 176 °F |
| Ehitus / Structure | |
| Andmesooned (LOXONE Tree): / Data wires (LOXONE Tree): | 2x 0.8 mm Ø (0.5 mm² / AWG21) - solid copper conductor - twisted pair - colours: green, green-white |
| Juhtsooned väikese võimsusega seadmetele / Conductor wires for low-power devices | 2x 0.8 mm Ø (0.5 mm² / AWG21) - solid copper conductor - twisted pair - colours: orange, orange-white |
| Juhtsooned suure võimsusega seadmetele / Conductor wires for high-power devices | 2x 1.5 mm² / AWG16 - fine-stranded copper conductor - conductor construction: 28 x 0.245 mm Ø - colours: orange, white-orange |
| Arvesti märgistus / Meter markings | Yes |
| Vasesisaldus / CU-Content | 50 kg/km |
| Toote omadused / Product Characteristics | |
| Värvid / Colours | Green: RAL 6018 |
| Isolatsioonikatte ja katte materjal / Material insulating cover and cover | PVC |
| Pinnaviimistlus / Finish | Matte |
| Kaal ja mõõtmed / Weight & Dimensions | |
| Pakend / Packaging presentation | 200 m / 656 ft |
| Netokaal / Net weight | 19 kg / 41.9 lb |
| Kogukaal / Total weight | 19.7 kg / 43.4 lb |
| Toote mõõtmed / Product dimensions | 7.5mm / 0.30” (D) |
| Pakendi mõõtmed / Packaging dimensions | 495 x 270 x 495 mm / 19.49 x 10.63 x 19.49” (L x W x H) |
| Sertifikaadid ja standardid / Certifications & Standards | |
| Kaitseaste / Ingress protection | IP20 |
| Sertifikaadid / Certifications | UL CL2, 2x2C21+2C16, UL File No. E508569 |
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100637
