Product Description
Kirjeldus (eesti keeles)
Kohalolekuandur on igat tüüpi projektis üks olulisemaid andureid ning tuvastab kohalolu, liikumist ja valgustatust. See on aluseks ruumi olulisemate funktsioonide automatiseerimisele.
Omadused:
- Kohalolu ja liikumise tuvastus
- Paljude funktsioonide, nagu valgustus, küte, heli jm, automatiseerimine
- Kasutatav valveandurina
- Paindlik paigutus tänu LOXONE Air tehnoloogiale
Description (English)

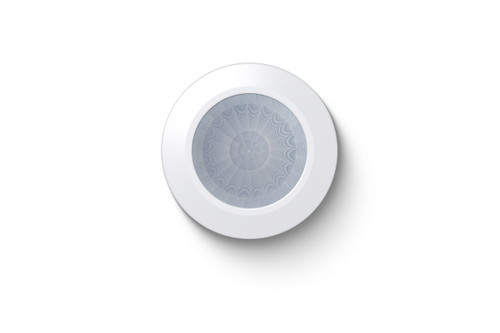

The presence detector is one of the most important sensors in any type of project and is used to detect presence, movement and brightness. It forms the basis for the automation of the most important functions in a room.
Features:
- Detection of presence and movement
- Automation of numerous functions such as lighting, heating, audio and much more
- Can be used as an alarm detector
- Flexible placement thanks to LOXONE Air technology
Tehnilised andmed / Technical data
| Elektrilised andmed / Electrical Specifications | |
|---|---|
| Toide / Power Supply | 9 ... 30VDC or 2x 1.5V AA batteries |
| Energiatarve / Power consumption | typ. 0.195 W |
| Võimsuskadu / Power loss | max. 195mW |
| Liidesed / Interfaces | |
| LOXONE Air | 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW |
| Elektrilised andmed / Electrical Specifications | |
| Temperatuur / Temperature | -30 … 70°C / -22 … 158°F (external power supply) -18 ... 55°C / 0 ... 130°F (battery powered) |
| Keskkonnatingimused / Ambient Conditions | |
| Niiskus / Humidity | max. 95% r.H. (non condensing) |
| Elektrilised andmed / Electrical Specifications | |
| Liikumise tuvastus / Motion detection | passive infrared sensor |
| Liikumise tuvastusulatus / Motion detection range | 7m / 26.25ft (at height of 2.4m / 9.84ft) 18m / 59.1ft (at height of 10m / 32.8ft) |
| Soovitatav paigalduskõrgus / Recommended mounting height | 2.5 ... 3.5m / 8.2 ... 11.5ft |
| Paigalduskõrgus / Installation height | max. 10m / 32.8ft |
| Tuvastusnurk vertikaalselt / Detection angle vertical | 110° |
| Tuvastusnurk horisontaalselt / Detection angle horizontal | 360° |
| Valgusanduri mõõtevahemik / Measuring range of brightness sensor | 0 … 83000lx |
| Akustiline tuvastus / Acoustic detection | 60Hz … 20kHz, mono only when externally powered |
| Ühendusklemmid / Connection Terminals | |
| Juhtme ristlõige / Wire cross-section | 0.25 … 0.8 mm² / AWG 23 … 18 |
| Isolatsiooni eemaldamise pikkus / Stripping length | 5 mm / 0.2” |
| Temperatuuritaluvus / Temperature resistance | -40 … 105 °C / -40 … 221 °F |
| Toote omadused / Product Characteristics | |
| Värvid / Colours | White: RAL 9003 |
| Pinnaviimistlus / Finish | Matte |
| Kaal ja mõõtmed / Weight & Dimensions | |
| Netokaal / Net weight | 124 g |
| Kogukaal / Total weight | 147 g |
| Toote mõõtmed / Product dimensions | 98x29.8mm / 3.86x1.17” (DxH) |
| Pakendi mõõtmed / Pack size | 109x103.5x30mm / 4.29x4.06x1.18” (LxWxH) |
| Sertifikaadid ja standardid / Certifications & Standards | |
| Ohutusklass / Safety class | IP30 |
Allikas / Source: LOXONE ametlikud tooteandmed / official product data. Tootekood / Item No.: 100420
